TopHat Spids - LL Apex 120-150-180 gr. B/O

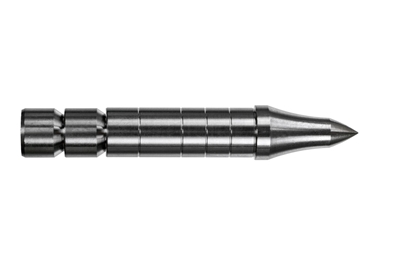

TopHat®DBO 140-160-180gn Break-Off

TopHat®Break-Off is a standard arrowhead equipped with one or more break-offs at its end. This break-off system gives high flexibility for arrow tuning.


3D - Shape:
That especially for 3D animals/targets designed shape is characterized through its high effectiveness. In comparison with other arrowheads this 3D shaped arrow point enters more aggressive and strait into the target. Through the shape of the arrowhead there is a high resistance of diversion. This leads to less tension and therefore more protection for the shaft. The shape prevents rebound on the surface of the target.


Material:


Stainless steel (VA):
The material stainless steel is corrosion-resistant. It stays long term resistant against weather and other external circumstances. It is possible to regrind the material at any point.


TopHat®Break-Off Technology:

TopHat®Break-Off points conform the standard arrowheads for carbon arrows with the feature that it is possible to tune the weight.
The grooves for the glue, at the shaft of the head, are purposely low- shaped. This prevents the usage of too much glue. Wrong spread glue can cause imbalance.

Installation: After about 60 seconds the TopHat®Break-Off point sticks perfectly together with the carbon shaft (with TopHat®Bond). Beforehand the carbon shaft has to be whet from the inside and cleaned with a solvent. 1-2 drops of TopHat®Bond onto the shaft of the head and push in a rotating movement all the way until it is tight fastened.

Run- point accuracy of the arrow point: 0.006 µ


Break-Off:

The head has one or more break-offs at its end. These break-offs can be broken off at leisure to get the ideal arrowhead weight.
Special insertions at the break off area make sure that the tolerance of the weight, after breaking- off a part, is absolutely slight.
